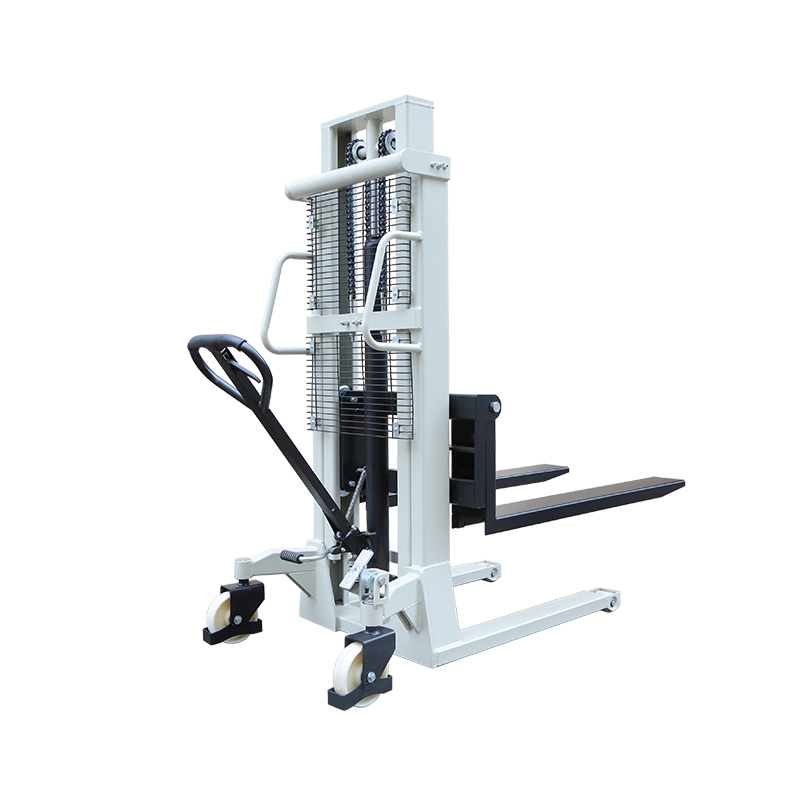

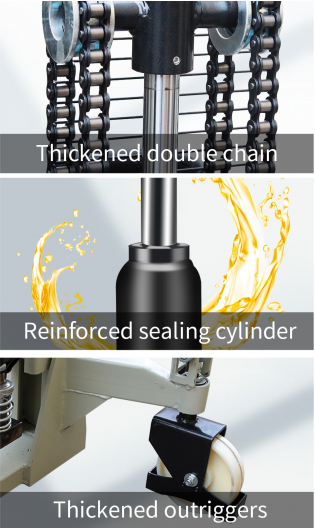

The manual stacker adopts a modular reinforced design, with a load capacity covering standard requirements from 1000kg to 2000kg, and features flexible operating height adjustment from 1.6 to 3.0 meters to adapt to various stacking scenarios. The core structure features triple reinforcement with a thickened transmission chain, thickened support legs, and a thickened protective net, which significantly improves the overall rigidity.
Equipped with a manual hydraulic pump power system and adjustable outer-width forks, it offers flexible operation. The braked nylon wheel set is installed at the bottom, providing wear resistance and, combined with the low center of gravity design, effectively ensures stability during heavy-load operations. It is especially suitable for high-frequency handling scenarios such as warehousing, logistics, and manufacturing workshops.
Appearance
The product adopts pebble gray paint and uses robot welding technology, with smooth and burr-free welds. The rubber-coated handle integrates all operation functions, making the overall structure strong, compact, and the body streamlined.
Durability
The manual stacker features a load range of 1000kg-2000kg and an operating height of 1.6-3.0 meters. It is equipped with adjustable forks and a manual hydraulic pump for lifting power, along with a thickened and reinforced chain, thickened support legs, and a thickened protective net for triple reinforcement, making the overall structure firm, compact, and stable during lifting. In addition, it features nylon wheels with brake function for enhanced wear resistance and safety.
| Rated capacity : | 1000kg~2000kg |
| Lift : | 1000mm~3000mm |
| Fork length : | 1150mm |
| Single fork size (CxE) : | 150mm*60mm |
| Fork outer width : | 740mm |
| Lowered height of fork : | 85mm |
Hangzhou Hangcha E-commerce Co., Ltd is a subsidiary of Hangcha Group Co., Ltd.
Hangcha Group is a listed enterprise with stock code 603298. Hangcha Group established in 1963, is located in Hangzhou city. Hangcha Group is a material handling company ranked in the leading enterprise in China and it’s a professional engaged in the research, development, sale and service of forklift, tractor, and intelligent industrial trucks. as well as provision of intelligent logistics system solutions. By merging intelligent manufacturing equipment and information system, the Company has created a smart factory of coordinated operation that centers on its head office and integrates three major intelligent parks as well as a number of external companies and suppliers.
Reliable HANGCHA Manual Pallet Stacker 1 Ton -2 Tons manufacturer and supplier in China, we strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
