Hangcha’s new pedestrian all-electric stacker adopts a dual electric drive system for walking and lifting, equipped with a 24V/85Ah maintenance-free lead-acid battery and a high-performance drive motor to deliver continuous, stable power output—ideal for high-frequency, high-intensity warehousing operations.
The stacker features a reinforced gantry structure built with 16mm-thick C+H channel steel and a double-chain transmission design, ensuring zero load loss at 2.5 meters and stable load-bearing performance for stacking operations up to 3.6 meters.
Staying true to the all-electric series’ legacy, it includes an integrated multi-function handle combining speed adjustment, lifting control, and emergency braking. Paired with PU-material front dual wheels (designed for low noise + traceless operation), the stacker enables effortless maneuvering in tight indoor spaces.
Combining robust power, durable construction, and user-friendly operation, this stacker is perfect for efficient pallet handling in e-commerce warehouses, manufacturing workshops, and similar scenarios.

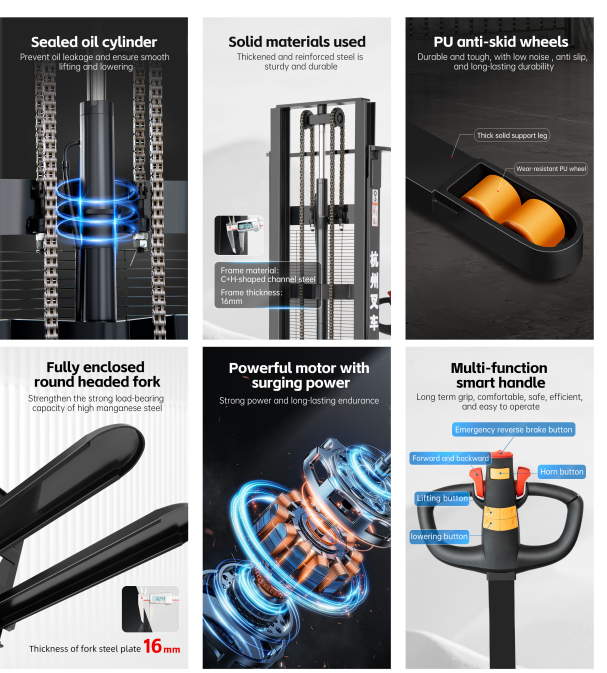

The stacker features a narrow-frame design with a width of 850mm, paired with a sharp-edged C+H-shaped channel steel gantry (16mm thickness). Its integrated welding process ensures even, smooth welds for a robust build. The multi-function operating handle combines electronic speed control, lift adjustment, and an emergency brake button, while the streamlined operator platform blends power and modern design for a visually cohesive look.
Practicality
Powered by dual drive motors and a 24V/85Ah maintenance-free lead-acid battery, this stacker delivers uninterrupted operation. Its C+H channel steel reinforced structure (16mm gantry thickness) and dual-chain drive system guarantee zero load loss at 2.5m lifting height. The standard 1150mm-long solid fork, crafted from 16mm reinforced high-manganese steel, ensures heavy-load resistance without deformation.
| Rated capacity : | 1500kg |
| Lift : | 2000mm~3600mm |
| Fork length : | 1150mm |
| Single fork size (CxE) : | 170mm*55mm |
| Fork outer width : | 560/680mm |
| Lowered height of fork : | 90mm |
| Lead-acid battery : | 24v85ah |
Hangzhou Hangcha E-commerce Co., Ltd is a subsidiary of Hangcha Group Co., Ltd.
Hangcha Group is a listed enterprise with stock code 603298. Hangcha Group established in 1963, is located in Hangzhou city. Hangcha Group is a material handling company ranked in the leading enterprise in China and it’s a professional engaged in the research, development, sale and service of forklift, tractor, and intelligent industrial trucks. as well as provision of intelligent logistics system solutions. By merging intelligent manufacturing equipment and information system, the Company has created a smart factory of coordinated operation that centers on its head office and integrates three major intelligent parks as well as a number of external companies and suppliers.
Reliable 1.5 Tons Walkie Electric Stacker Lift 3m manufacturer and supplier in China, we strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
