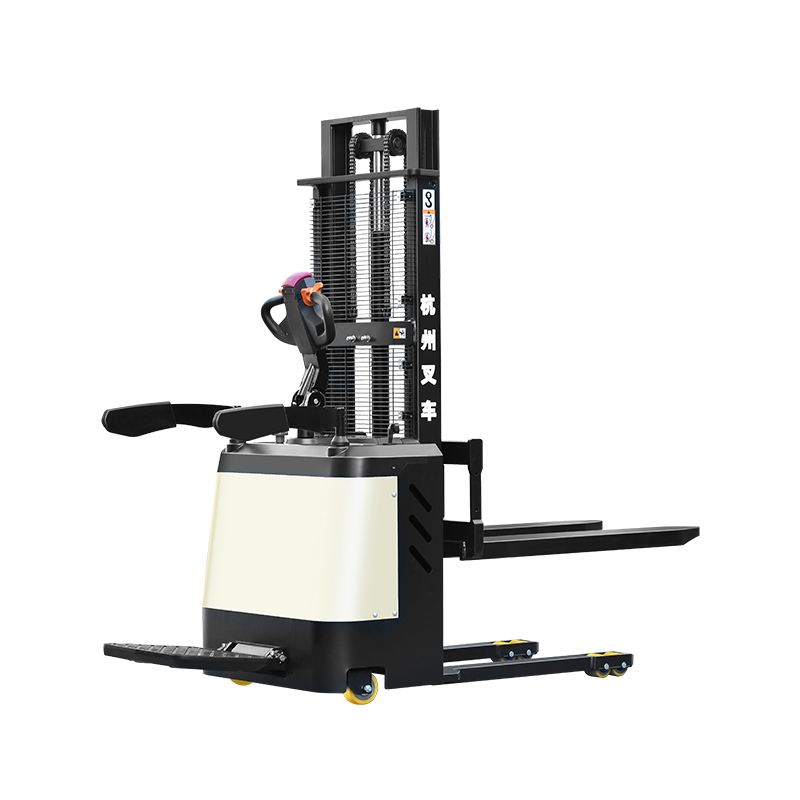

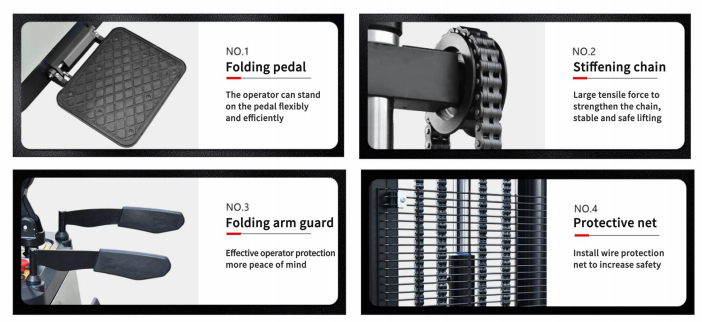

Hangcha's new stand-on all-electric stacker offers a lifting height range of 2.0-3.5 meters for operation scenarios. It is equipped with a high-power, high-performance motor and a maintenance-free lead-acid battery pack to support continuous operation. The vehicle adopts a C+H channel steel reinforced door frame (with key parts 23mm thick), with a double-chain drive and integrated forks (16mm thick) to ensure structural stability under 3.5-meter high load conditions. The innovative integrated foldable arm guard + pedal features an ergonomic** design** to reduce fatigue from long-term operation; it is equipped with an integrated multi-function handle (combining speed regulation, lifting, and emergency stop functions) and a PU silent front wheel group (mark-free and wear-resistant) to achieve flexible control in narrow indoor passages. It is especially suitable for palletized handling and stacking scenarios such as manufacturing warehouses and logistics transit centers.
Appearance
The vehicle adopts a streamlined body structure with an industrial-grade high-strength steel frame, featuring a compact and modern appearance. The simple operation platform features a display screen that shows the power, fault code, and operation status in real time, and the integrated operating handle conforms to ergonomic principles.
Durability
This product uses a 24V/90Ah maintenance-free lead-acid battery with a high-performance drive motor to provide powerful output. The core load-bearing structure uses a 23mm-thick C+H channel steel composite gantry, combined with a dual-chain transmission system and a 1150mm-long integrated cold-rolled steel fork (16mm thick), forming a triple-reinforced support system. Even at the maximum elevation of 2.5 meters, it can maintain stable loading with a 600mm load center distance, achieving 1.5T/2T rated capacity without any load loss throughout the entire process. This design is optimized for high-frequency handling scenarios such as manufacturing warehouses and logistics transit centers. While ensuring operational efficiency, it significantly improves the equipment's durability and reliability under extreme conditions.
| Rated capacity : | 1500kg |
| Lift : | 2000mm~3500mm |
| Fork length : | 1150mm |
| Single fork size (CxE) : | 170mm*60mm |
| Fork outer width : | 680mm |
| Lowered height of fork : | 90mm |
| Lead-acid battery : | 24v90ah |
Hangzhou Hangcha E-commerce Co., Ltd is a subsidiary of Hangcha Group Co., Ltd.
Hangcha Group is a listed enterprise with stock code 603298. Hangcha Group established in 1963, is located in Hangzhou city. Hangcha Group is a material handling company ranked in the leading enterprise in China and it’s a professional engaged in the research, development, sale and service of forklift, tractor, and intelligent industrial trucks. as well as provision of intelligent logistics system solutions. By merging intelligent manufacturing equipment and information system, the Company has created a smart factory of coordinated operation that centers on its head office and integrates three major intelligent parks as well as a number of external companies and suppliers.
Reliable 1.5 Tons Stand-on Electric Pallet Stacker Lift 3m manufacturer and supplier in China, we strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
