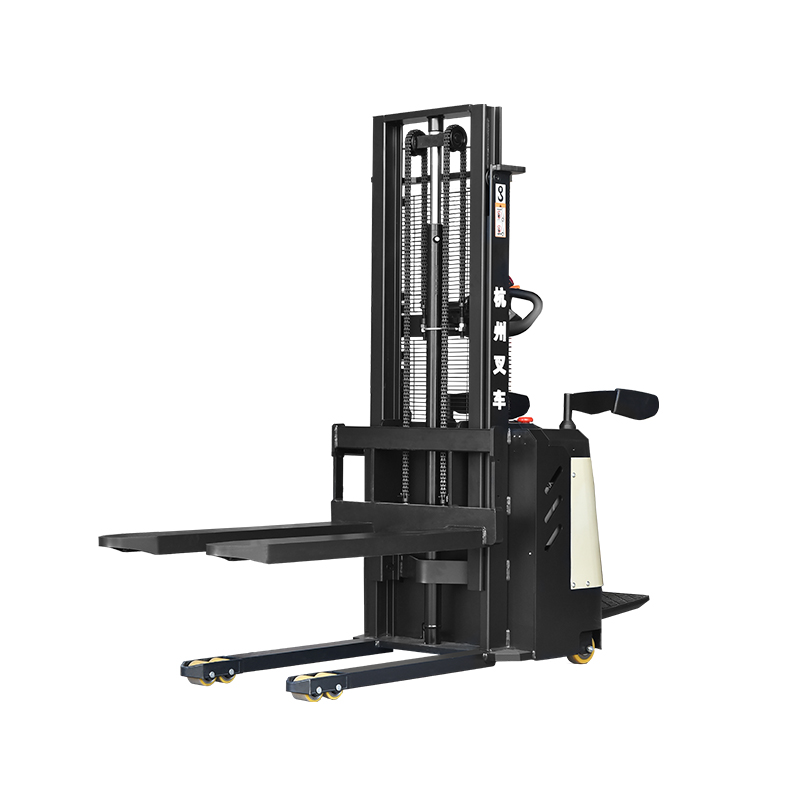

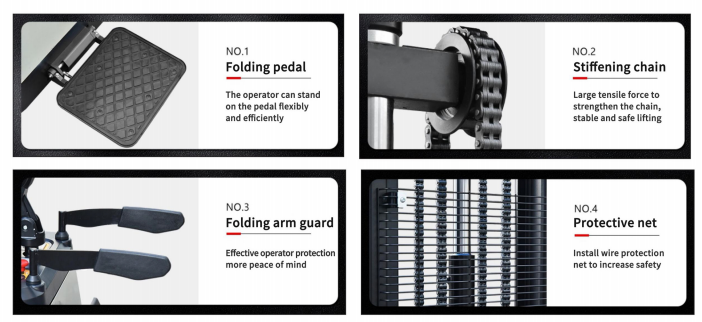

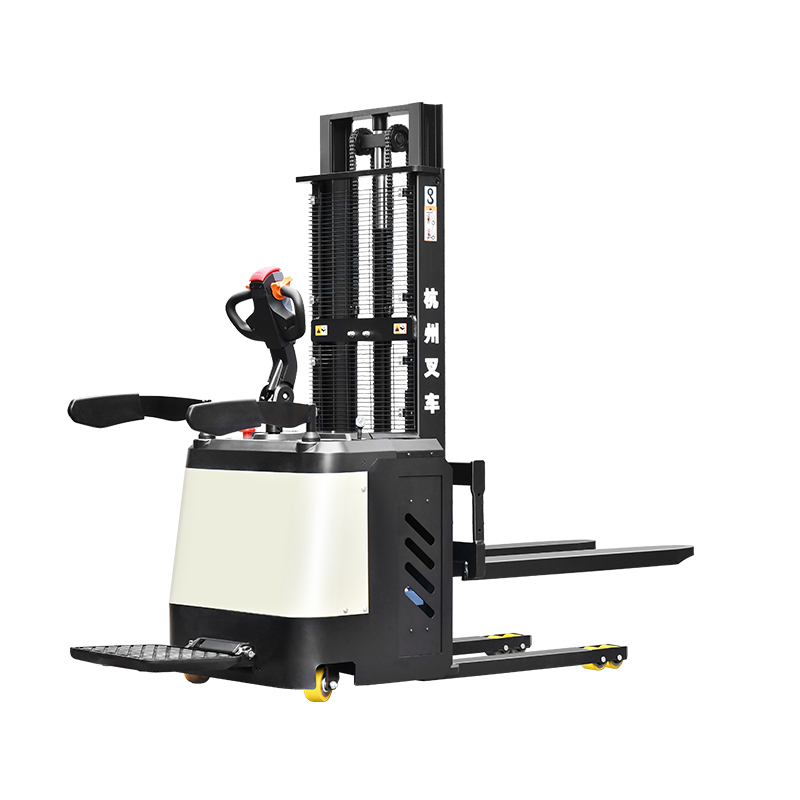

Hangcha's new stand-on all-electric stacker offers a lifting height range of 2.0-3.5 meters for various operation scenarios. It is equipped with a high-power, high-performance motor and a maintenance-free lead-acid battery pack to support continuous operation. The vehicle adopts a C+H channel steel reinforced door frame (with key parts 23mm thick), with a double-chain drive and integrated forks (16mm thick) to ensure structural stability under high-load conditions at 3.5-meter height. The innovative integrated foldable arm guard + pedal features ergonomic** design** to reduce fatigue from long-term operation. It is equipped with an integrated multi-function handle (combining speed regulation, lifting, and emergency stop functions) and a PU silent front wheel group (mark-free and wear-resistant) to achieve flexible control in narrow indoor passages. It is especially suitable for palletized handling and stacking scenarios such as manufacturing warehouses and logistics transit centers.
Appearance
The vehicle features a streamlined body structure with an industrial-grade high-strength steel frame, offering a compact and modern appearance. The simple operation platform includes a display screen that shows power, fault codes, and operation status in real time, while the integrated operating handle follows ergonomic principles.
Durability
This product uses a 24V/120Ah maintenance-free lead-acid battery with a high-performance drive motor to provide powerful output. The core load-bearing structure features a 23mm-thick C+H channel steel composite gantry, combined with a dual-chain transmission system and a 1150mm integrated cold-rolled steel fork (16mm thick), forming a triple-reinforced support system. Even at its maximum elevation of 2.5 meters, it maintains stable loading with a 600mm load center distance, achieving a 2T rated load without any load loss throughout the operation. This design is specifically designed for high-frequency handling scenarios such as manufacturing warehouses and logistics transit centers, significantly improving the equipment's durability and reliability under extreme conditions while maintaining operating efficiency.
| Rated capacity : | 2000kg |
| Lift : | 2000mm~3500mm |
| Fork length : | 1150mm |
| Single fork size (CxE) : | 170mm*60mm |
| Fork outer width : | 680mm |
| Lowered height of fork : | 90mm |
| Lead-acid battery： | 24v120ah |
Hangzhou Hangcha E-commerce Co., Ltd is a subsidiary of Hangcha Group Co., Ltd.
Hangcha Group is a listed enterprise with stock code 603298. Hangcha Group established in 1963, is located in Hangzhou city. Hangcha Group is a material handling company ranked in the leading enterprise in China and it’s a professional engaged in the research, development, sale and service of forklift, tractor, and intelligent industrial trucks. as well as provision of intelligent logistics system solutions. By merging intelligent manufacturing equipment and information system, the Company has created a smart factory of coordinated operation that centers on its head office and integrates three major intelligent parks as well as a number of external companies and suppliers.
Reliable 2 Tons Stand-on Electric Pallet Stacker Lift 3m manufacturer and supplier in China, we strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
