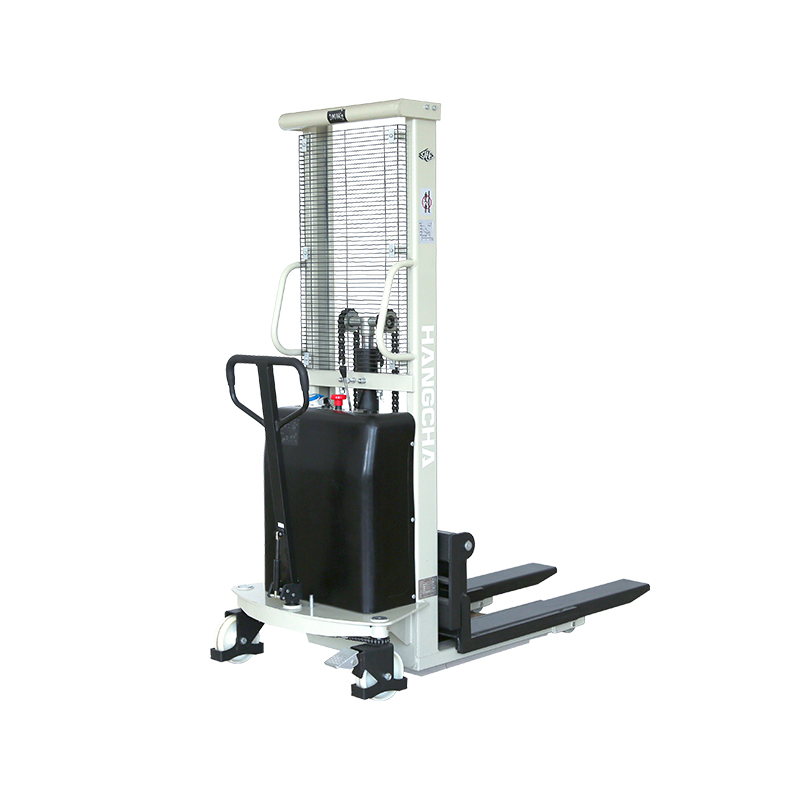

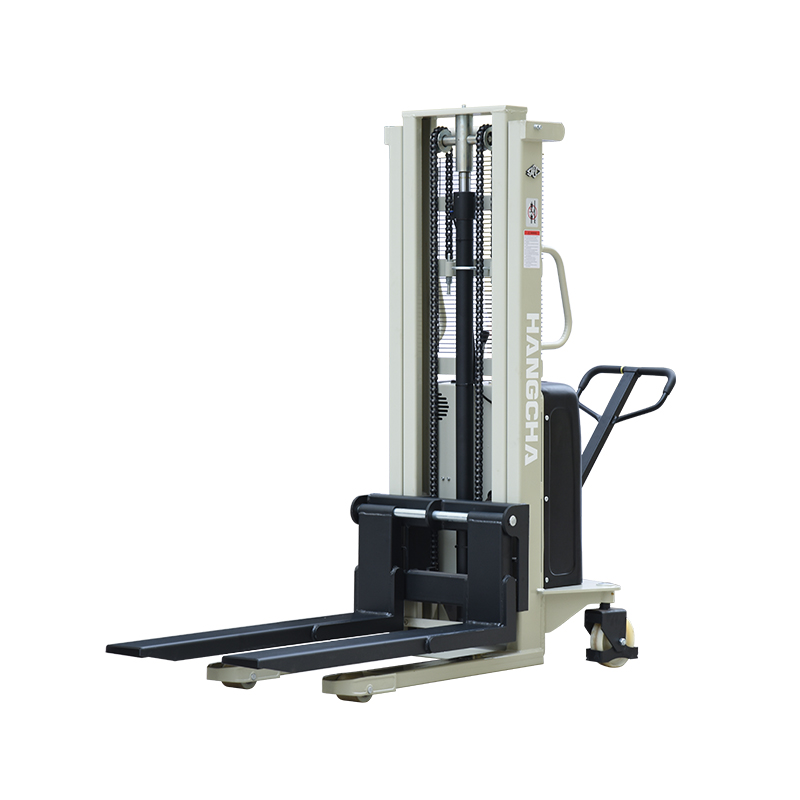

This is an electric drive/manual hydraulic semi-electric stacker. It is a transitional storage equipment between manual stackers and full electric stackers. It is designed for cargo handling and stacking operations in warehouses, factories and other scenarios. Through the coordinated cooperation of electric lifting and manual walking functions, the use cost is significantly reduced while ensuring operational efficiency. This product adopts a 12V high-efficiency power unit to provide stable power support for fork lifting, and is equipped with a 12V 120Ah battery to achieve continuous operation. The whole vehicle has a solid and stable structure, is made of single-piece steel, has strong impact resistance, and is equipped with wear-resistant nylon wheels with brakes to extend the service life and reduce costs.
Appearance

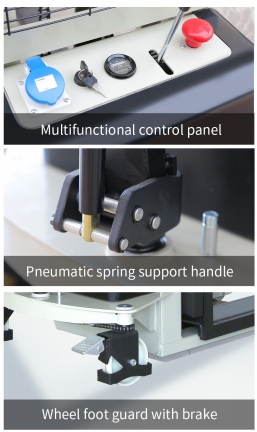

The vehicle adopts a low-center-of-gravity structural design, with angular and tough lines and pebble-gray paint. The vehicle is simple and elegant. The concise multifunctional operating platform provides easy operation. The welds on the body are smooth, the process is precise, and it meets all mechanical safety standards.
Practicality
This product adopts a hybrid mode of electric lifting + manual walking, equipped with a 12V 120Ah large-capacity battery, which optimizes energy consumption while ensuring operating efficiency. The product covers a standard load range of 1.0-2.0 tons, and is suitable for basic stacking requirements up to 1.6 meters in height. It is equipped with high-strength adjustable forks to flexibly match pallets of different specifications. Through the four-point support chassis structure and low center of gravity counterweight design, combined with wear-resistant nylon wheels and integrated rear wheel brakes, it forms a multiple safety protection system, which significantly improves the stability of heavy-load handling, making it especially suitable for intensive material turnover operations in scenarios such as supermarket warehousing and truck loading and unloading.
| Rated capacity : | 1000kg~2000kg |
| Lift : | 1000mm~3000mm |
| Fork length : | 1150mm |
| Single fork size (CxE) : | 150mm*60mm |
| Fork outer width : | 740mm |
| Lowered height of fork : | 85mm |
| Motor: | 12V1.6KW |
| Battery: | 12V120AH |
Hangzhou Hangcha E-commerce Co., Ltd is a subsidiary of Hangcha Group Co., Ltd.
Hangcha Group is a listed enterprise with stock code 603298. Hangcha Group established in 1963, is located in Hangzhou city. Hangcha Group is a material handling company ranked in the leading enterprise in China and it’s a professional engaged in the research, development, sale and service of forklift, tractor, and intelligent industrial trucks. as well as provision of intelligent logistics system solutions. By merging intelligent manufacturing equipment and information system, the Company has created a smart factory of coordinated operation that centers on its head office and integrates three major intelligent parks as well as a number of external companies and suppliers.
Reliable HANGCHA Semi Electric Pallet Stacker Lift 1.6m manufacturer and supplier in China, we strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
