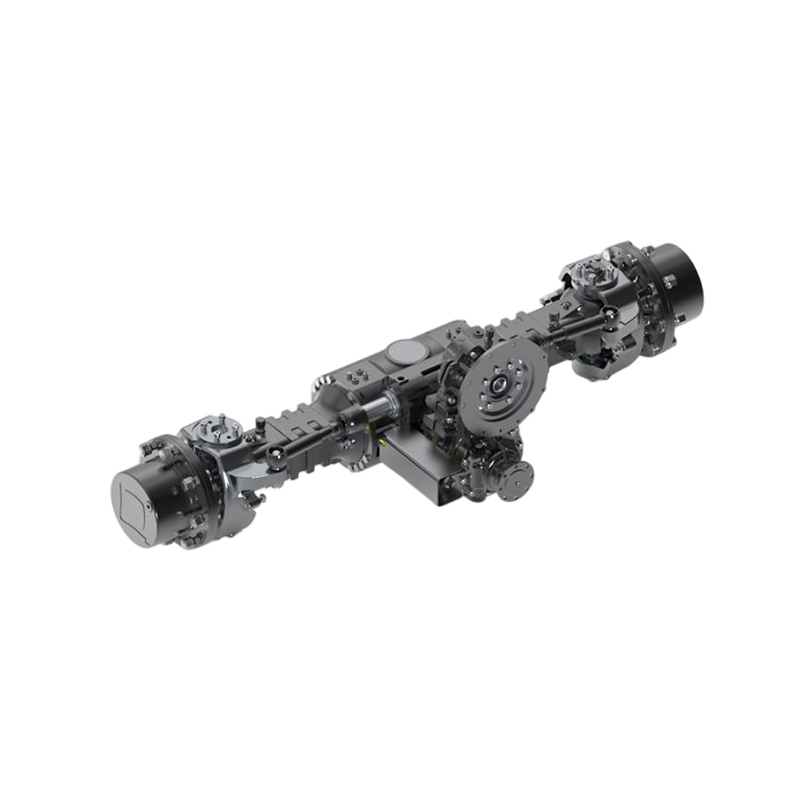

This series of electric telescopic boom off-road drive axles is designed for complex working conditions. It integrates the manufacturing advantages of the entire industry chain with advanced R&D technologies, and demonstrates excellent environmental adaptability and power performance. The product adopts a fully enclosed wet braking system to effectively isolate dust and water vapor erosion, ensuring long-lasting and stable braking performance. Backed by a professional R&D team and industry-leading nationally accredited laboratories, the product has undergone rigorous verification such as drive axle durability testing and brake performance simulation. Its unique telescopic boom structure and large steering angle design give the vehicle excellent obstacle-crossing capability and flexible maneuverability. Through precisely calculated transmission ratios and high torque output, the vehicle maintains strong power within the 2-5 ton load range, making it particularly suitable for heavy-load operations in rugged terrain such as construction sites and mines.
Appearance
The drive axle utilizes a heavy-duty structure, with an overall length precisely designed to meet load requirements and a high-precision wheel rim mounting surface. The axle housing is treated with an automated, environmentally friendly spray coating, while the telescopic arm mechanism is precision-machined to create a clean geometric profile. The hydraulic lines and sensor interfaces are strategically arranged, ensuring the vehicle meets functional requirements while displaying the unique structural beauty and strength of construction machinery.
Practicality
This series of drive axles features fully enclosed wet braking technology, providing a wide torque output range. Its core advantage lies in the seamless integration of the drivetrain and telescopic boom structure. Through optimized transmission ratios and transfer case configuration, this system achieves precise torque distribution and efficient transmission. Rigorous bench testing and operational simulation verification ensure robust power output while offering excellent impact resistance and environmental adaptability. The modular design facilitates maintenance of key components, and combined with the intelligent lubrication system, significantly extends maintenance cycles and reduces operational costs, providing reliable and long-lasting power for off-road forklifts operating under heavy loads in complex terrain.
|
Project |
2-2.5 t |
3 - 3.5 t |
4 - 4.5 t |
|
Brake Type |
Wet |
Wet |
Wet |
|
Overall Axle Length(mm) |
1800 |
2070 |
2300 |
|
Rim Mounting Distance(mm) |
1530 |
1790 |
2020 |
|
Rim Mounting Dimensions |
45 °* 8 M 22 *1.5- Φ 275 |
36 °* 10 M2 2 *1.5- Φ 335 |
36 °* 10 M2 2 *1.5- Φ 335 |
|
Maximum Steering Angle(°) |
37.5 |
40 |
45 |
|
Output Torque(Nm) |
14500 |
33500 |
33500 |
|
Axle Load(kg) |
7000 |
10500 |
15000 |
|
Ratio |
50.63 (With transfer case)
|
75.6 (With transfer case)
|
75.6 (With transfer case) |
