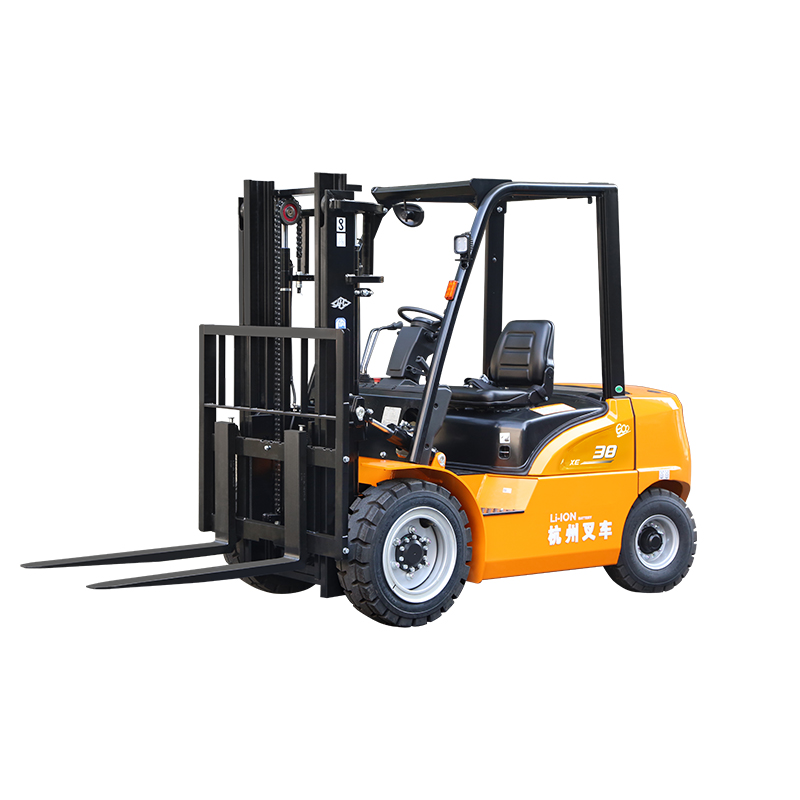

The appearance of Hangcha XE series lithium battery forklift follows the family design of Hangcha lithium battery special vehicles. The strong and smooth lines not only demonstrate the professional quality, but also optimize the aerodynamic performance of the whole vehicle. Equipped with an 80V permanent magnet synchronous motor system, it has a higher power density and a load range of 1500kg-10000kg. It innovatively adopts the design of key components common to internal combustion vehicles, and passes the dual-standard verification system of electric and internal combustion. Its enhanced test standards are higher than those of traditional internal combustion forklifts, ensuring excellent reliability and durability. The structural design with a low center of gravity and high load margin, combined with an increased ground clearance, perfectly adapts to the outdoor rugged ground working environment. The whole vehicle meets the IPX4 protection standard and is equipped with an intelligent battery heating module, which can operate stably in both humid environments and low temperature conditions.
Appearance
The XE series follows the exterior design of Hangcha's lithium battery special vehicle, with strong and smooth body lines, simple and elegant shape, standard green or yellow paint, and supports personalized color customization to meet the image needs of different companies.
Practicality
Equipped with an 80V dual permanent magnet synchronous motor system, the deep adjustment and matching of the reduction box, motor, and electronic control significantly reduces energy consumption and improves endurance performance. It adopts a reinforced drive axle and reduction box, and matches the same level of gantry, steering axle and large-size tires as internal combustion vehicles to ensure its high-intensity operating capacity under internal combustion conditions. The vehicle optimizes the turning radius to improve flexibility, and is equipped with a battery electric heating module and IPX4 protection level, which can easily cope with complex working conditions such as low temperature and humidity, and adapt to various application scenarios such as warehousing, logistics, and manufacturing.
Comfort

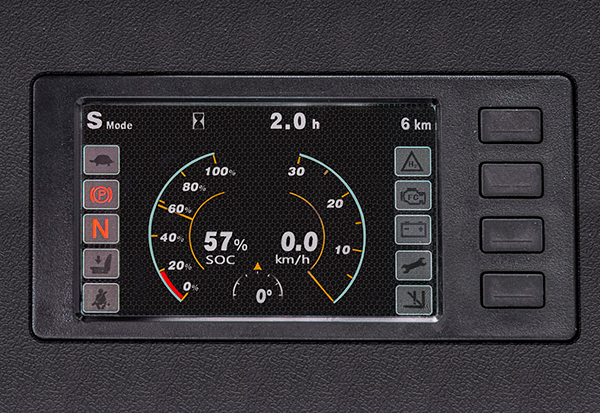

Continuing the comfort advantage of Hangcha lithium-ion forklifts, the cab adopts an open design, providing a wide field of vision and spacious operating space. Equipped with a color screen intelligent instrument, the graphical interface is intuitive and easy to read, which reduces the difficulty of operation, improves the human-machine interaction experience, and makes the operation more efficient and easier.
| Rated capacity : | 1500kg~3800kg |
| Mast: | 3.0M Duplex Mast |
| Fork length : | 1070mm (Support custom fork length) |
| Lithium battery: | 80V230AH |
| Pneumatic tire | |
| LED head lamp | |
| Turn signal lamp | |
| LED rear combination lamp | |
 |
1. Intelligent interactive instrument |
 |

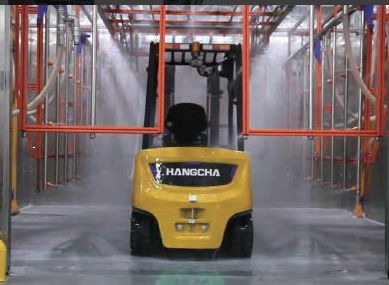

2. The whole vehicle is IPX4 waterproof |
 |
3. Excellent ergonomics and comfortable cab |
 |

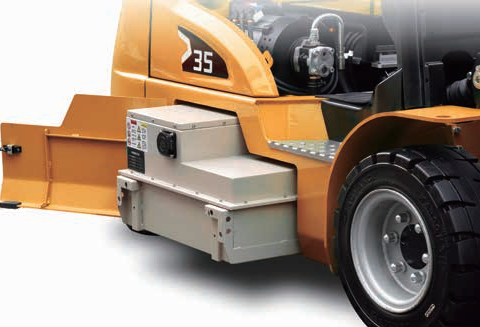

4. Side-opening battery compartment (supports optional quick-change batteries) |
Hangzhou Hangcha E-commerce Co., Ltd is a subsidiary of Hangcha Group Co., Ltd.
Hangcha Group is a listed enterprise with stock code 603298. Hangcha Group established in 1963, is located in Hangzhou city. Hangcha Group is a material handling company ranked in the leading enterprise in China and it’s a professional engaged in the research, development, sale and service of forklift, tractor, and intelligent industrial trucks. as well as provision of intelligent logistics system solutions. By merging intelligent manufacturing equipment and information system, the Company has created a smart factory of coordinated operation that centers on its head office and integrates three major intelligent parks as well as a number of external companies and suppliers.
Reliable XE Series 2 Tons Electric Forklift Lithium Battery manufacturer and supplier in China, we strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
