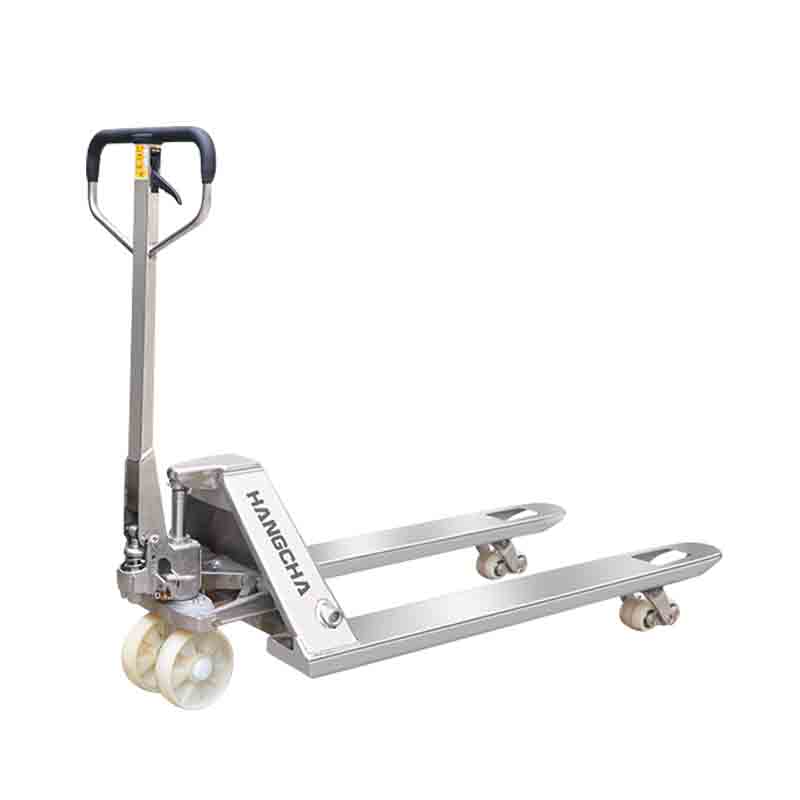

HANGCHA stainless steel manual pallet trucks are primarily made of 304 stainless steel, emphasizing corrosion resistance and easy cleaning. They are suitable for high-cleanliness/high-corrosion environments such as food, pharmaceutical, chemical, and cold chain industries. With a rated load capacity of 2-3 tons, they feature one-piece stamped 2.75mm thick forks, a 3.5mm thick backplate, and a smooth, robust wheel frame design, significantly enhancing the overall structural strength and load-bearing capacity, ensuring safer and more reliable handling operations. While maintaining high cost-effectiveness, they are also simple and convenient to maintain, effectively improving work efficiency.
Appearance

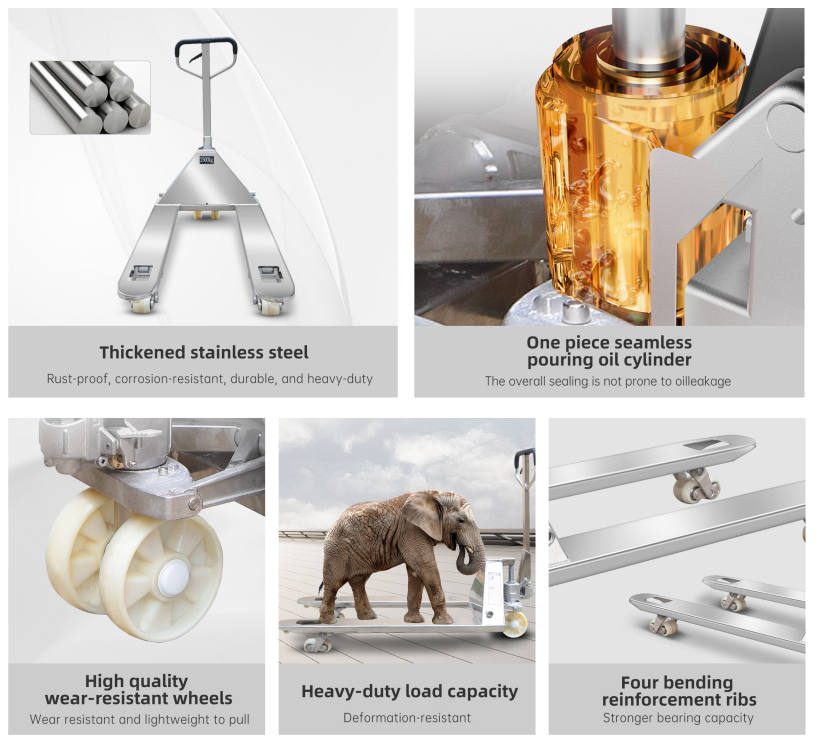

The entire structure is made of 304 stainless steel using a full welding process, resulting in a smooth, bright surface that is easy to clean and disinfect, making it suitable for hygienic environments such as food processing plants and pharmaceutical cleanrooms. The vehicle features clean, compact lines with no unnecessary dust accumulation corners. The integrated hydraulic cylinder design provides a neat appearance and is suitable for operation in confined spaces. Furthermore, the original stainless steel color is oxidation-resistant and will not fade, maintaining a clean appearance even after long-term use.
Durability
The core components are wear-resistant in all dimensions. The frame, forks, fasteners and other main parts are all made of 304 stainless steel. The hydraulic system is equipped with stainless steel sealed cylinders and leak-proof seals. The wheelset uses nylon wear-resistant wheels, which greatly reduces daily maintenance costs and has a service life far longer than ordinary pallet trucks.
Security
From structural design to functional protection, it achieves full-scenario safety assurance. The body is made of thickened stainless steel plates, with strong structural load-bearing capacity, rated load of 2-3 tons and stable load center. The ergonomic control handle is flexible to turn and has a small turning radius. The forks lift/lower smoothly, which is suitable for high-frequency operation scenarios with multiple people.
|Security
The 3-ton load capacity design is matched to the vehicle body structure, ensuring even stress distribution and vehicle stability during operation, avoiding operational hazards caused by load imbalance. The ergonomic control handle offers flexible steering and effortless operation, with a suitable turning radius, eliminating blind spots when working in narrow passages. The forks lift and lower smoothly and steadily, maintaining vehicle stability during weighing without affecting normal handling operations, balancing weighing accuracy and operational safety.
|
|
CBY30-W05AS |
CBY30-W05BS |
|||
|
Tyres |
/ |
PU |
Nylon |
PU |
Nylon |
|
Rated capacity |
Kg |
3000 |
3000 |
||
|
Lowered height of fork |
mm |
75 |
75 |
||
|
Fork outer width |
mm |
550 |
685 |
||
|
Fork length |
mm |
1150 |
1220 |
||
|
Single fork size |
mm |
160×55 |
160×55 |
||
|
Lift |
mm |
115 |
115 |
||
|
Overall length |
mm |
1550 |
1620 |
||
|
Overall width |
mm |
550 |
685 |
||
|
Overall height |
mm |
1210 |
1210 |
||
