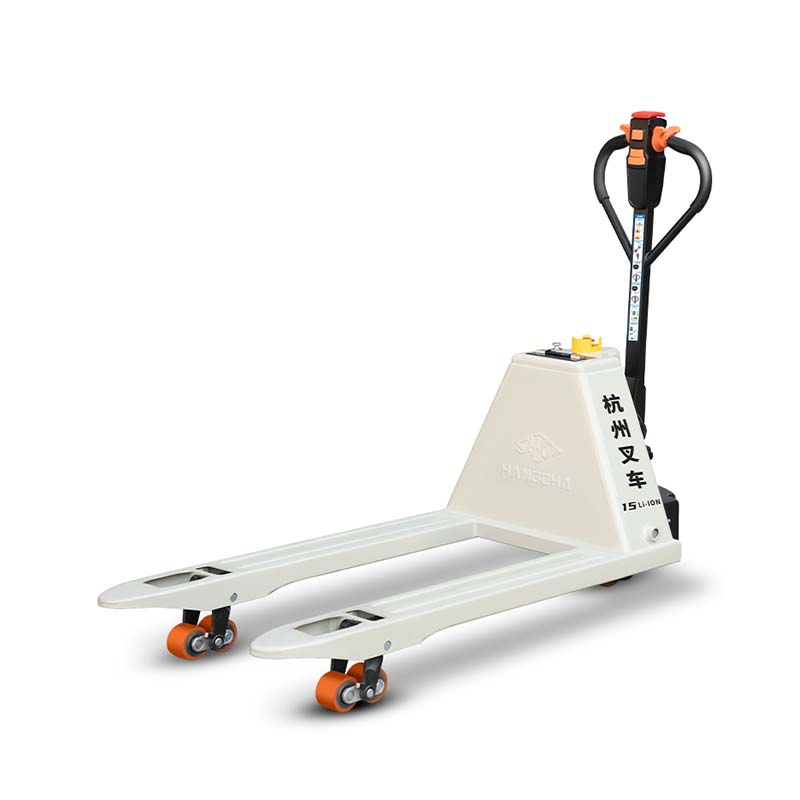

The Hanyue series of all-electric lithium battery pallet trucks is designed for light-duty, high-frequency warehousing and handling environments, offering 1500kg and 2000kg load capacities. The streamlined design, combined with sophisticated manufacturing processes, results in a compact and highly mobile structure, easily adapting to confined working spaces. The product is particularly suitable for e-commerce warehousing, manufacturing, and cold chain logistics scenarios, especially meeting the needs of operations with limited aisles and high handling frequency, significantly improving work efficiency and effectively reducing labor costs. Its compact design and excellent mobility make handling operations more efficient and convenient.





FEATURES
Appearance

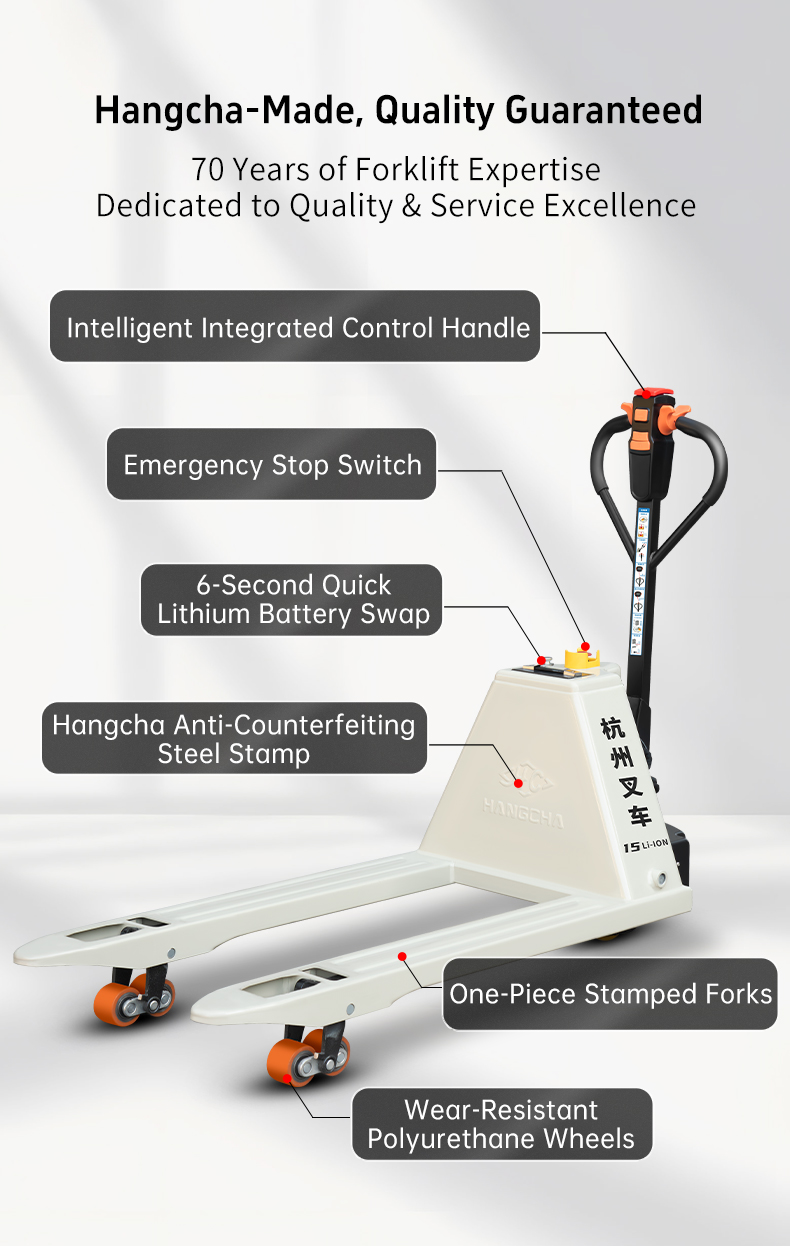

The Hanyue series of lithium battery-powered all-electric pallet trucks features a streamlined structure, compact layout, and smooth, even welds. The vehicle body is easily identifiable by functional and load markings, and is primarily pebbly gray in color, with customization options available.
Security
Featuring an anti-slip design, it easily handles warehouse slopes. An emergency reverse switch on the handle prevents operator injury if their back encounters an obstacle. The multi-function display shows battery level and fault codes, making troubleshooting simple and convenient.
Durability

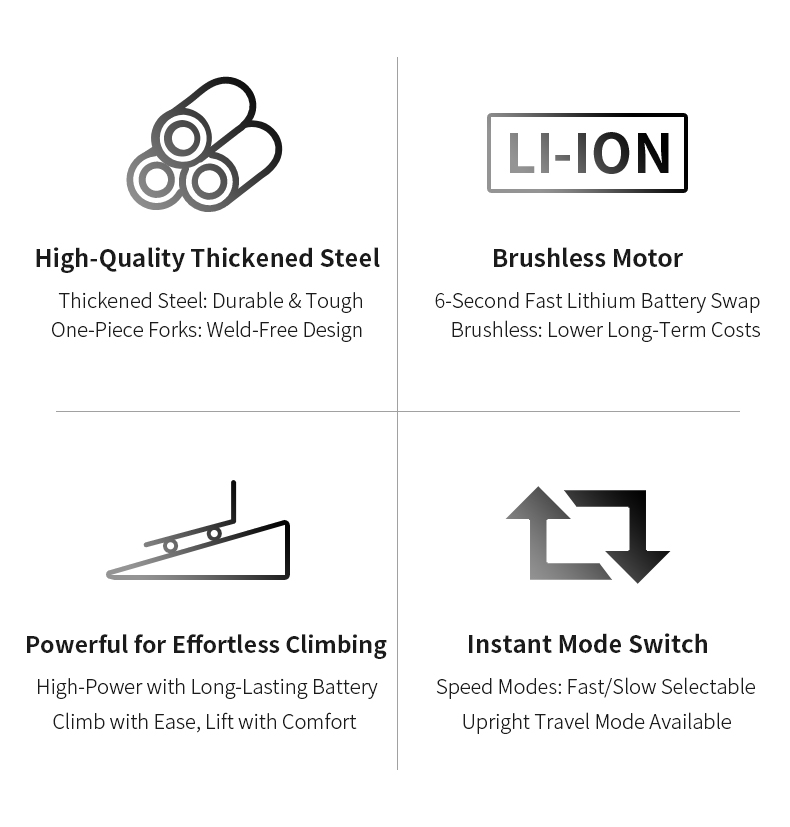

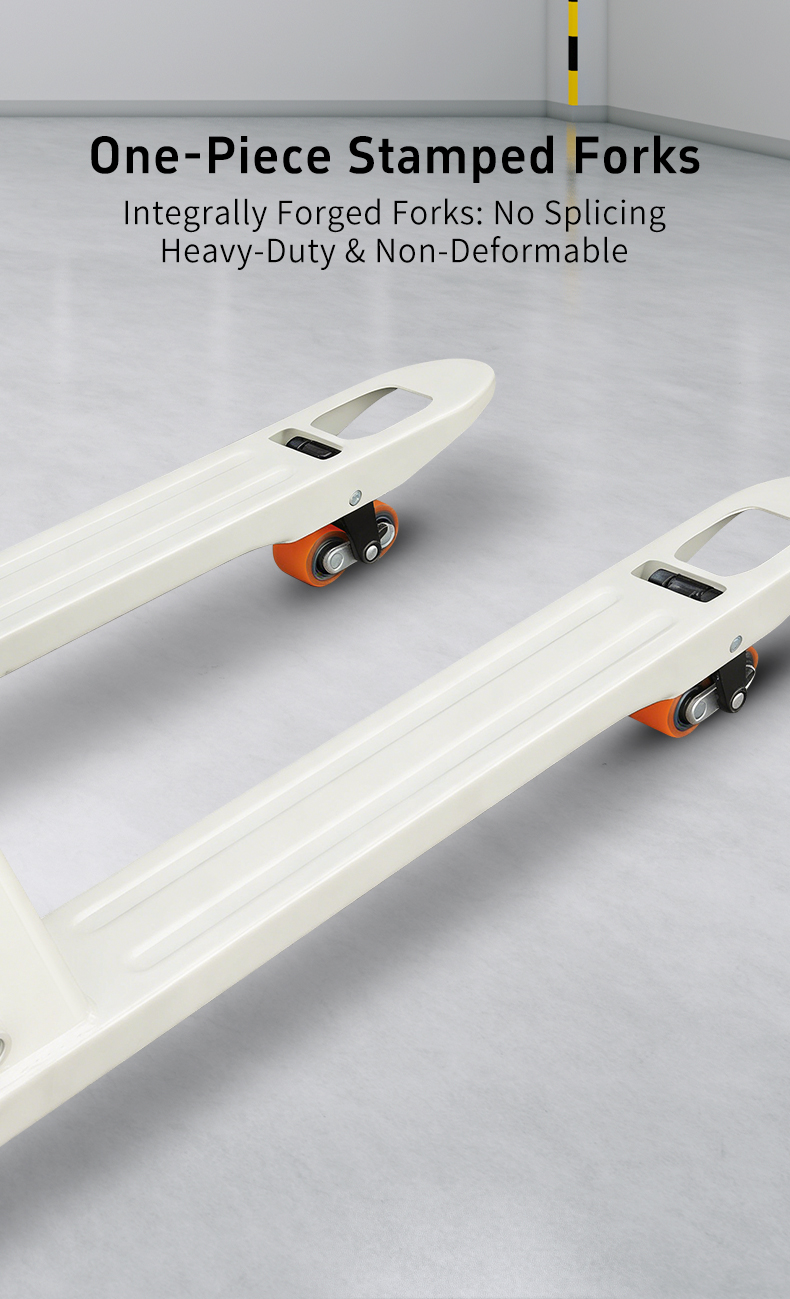

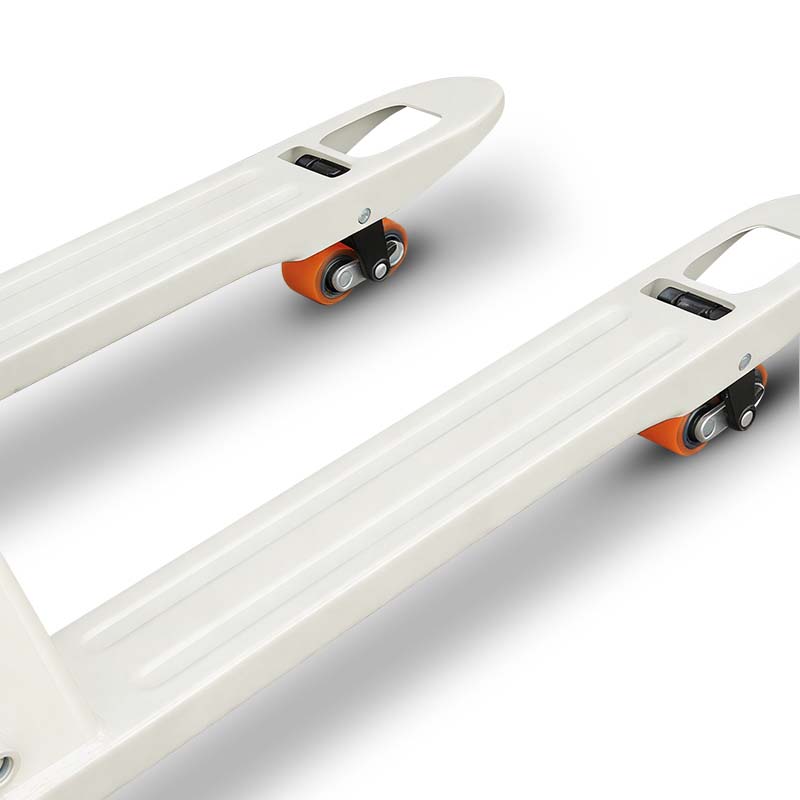

This 1.5-ton all-electric pallet truck is equipped with a 48V 10Ah maintenance-free lithium battery, supporting a 3-hour fast charge and providing 4-6 hours of continuous operation. Its core components feature reinforced, one-piece molded forks, ensuring a robust and durable structure that remains undeformed under heavy loads. Equipped with an advanced brushless drive motor, it boasts a lifetime maintenance-free design, completely eliminating the need for carbon brush replacements. Its integrated upright walking function gives it exceptional maneuverability in confined spaces, making it an ideal choice for improving warehouse operation efficiency.
Comfort

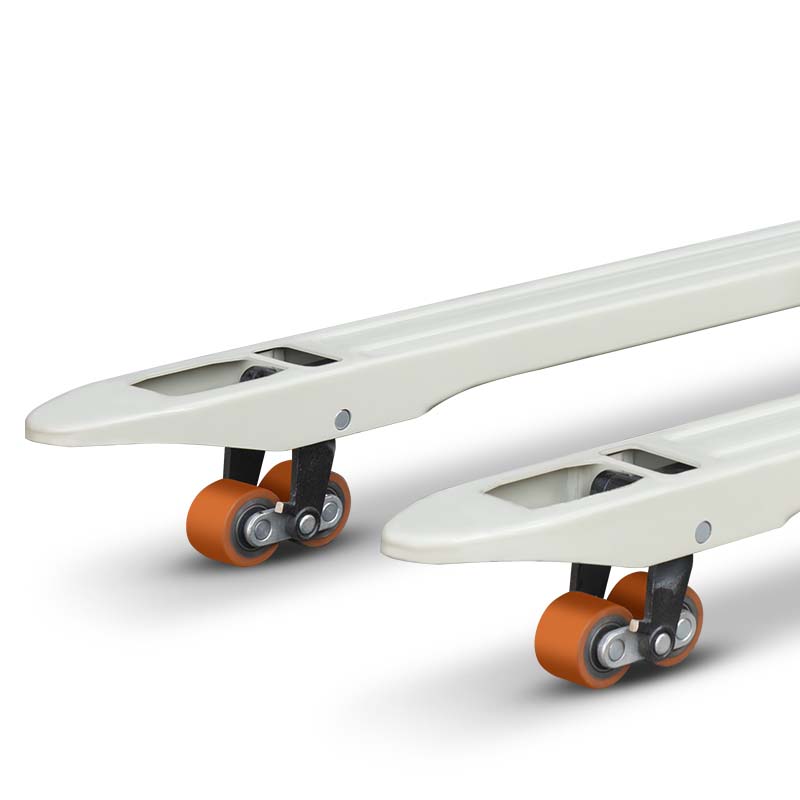

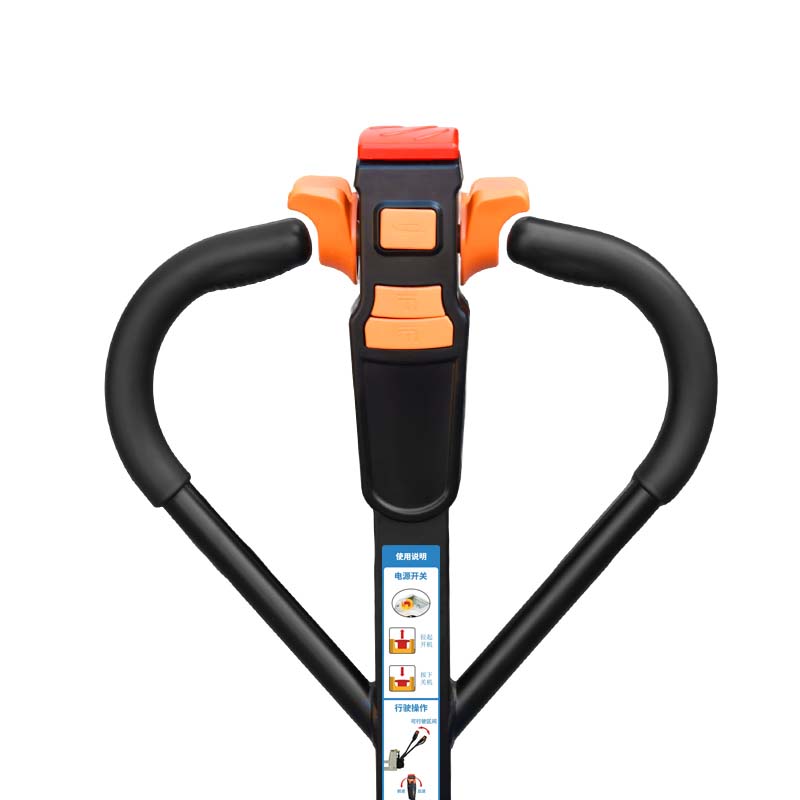

The multi-functional operating handle, equipped with a butterfly switch, is ergonomically designed to prevent fatigue during prolonged use and offers a smooth, Comfortable grip. All operations are concentrated on the handle and can be performed with one hand. The vehicle comes standard with polyurethane wheels, suitable for smooth roads, epoxy floors, etc., featuring wear resistance, no indentation, low noise, and shock absorption, effectively protecting the ground.
|
Model |
|
CBD15-W03-I |
CBD20-W03-I |
|
Rated Capacity |
kg |
1500 |
2000 |
|
Load Center Distance |
mm |
600 |
600 |
|
Service Weight (incl. battery) |
kg |
123 |
125 |
|
Wheel Type |
/ |
Polyurethane |
Polyurethane |
|
Drive Wheel Size (Ø × Width) |
mm |
Φ160 × 55 |
Φ160 × 55 |
|
Drive / Load Wheel Quantity |
/ |
1,4 |
1,4 |
|
Lift Height (h3) |
mm |
115 |
115 |
|
Tiller Height (min/max) (h14) |
mm |
700 / 1230 |
700 / 1230 |
|
Min. Fork Height (h13) |
mm |
85 (±1) |
85 (±1) |
|
Overall Length (l1) |
mm |
1650 |
1650 |
|
Overall Width (b1) |
mm |
560 / 685 |
560 / 685 |
|
Fork Size (Thickness / Width / Length) |
mm |
55 / 160 / 1150 |
55 / 160 / 1150 |
|
Fork Outside Width (b5) |
mm |
560 / 685 |
560 / 685 |
|
Aisle Width for 1000×1200 Pallet (Crossways) |
mm |
2168 |
2168 |
|
Aisle Width for 800×1200 Pallet (Lengthways) |
mm |
2081 |
2081 |
|
Turning Radius (Wa) |
mm |
1422 |
1422 |
|
Travel Speed (Laden / Unladen) |
km/h |
3.8 / 4.3 |
3.7 / 4.2 |
|
Max. Gradeability (Laden / Unladen) |
% |
5/16 |
5/16 |
|
Drive Motor Power |
kW |
0.75 |
1 |
|
Lift Motor Power |
kW |
0.8 |
0.8 |
|
Battery Voltage / Capacity |
V/Ah |
48V / 10Ah |
48V / 15Ah |
|
Charger |
A |
3 |
5 |
