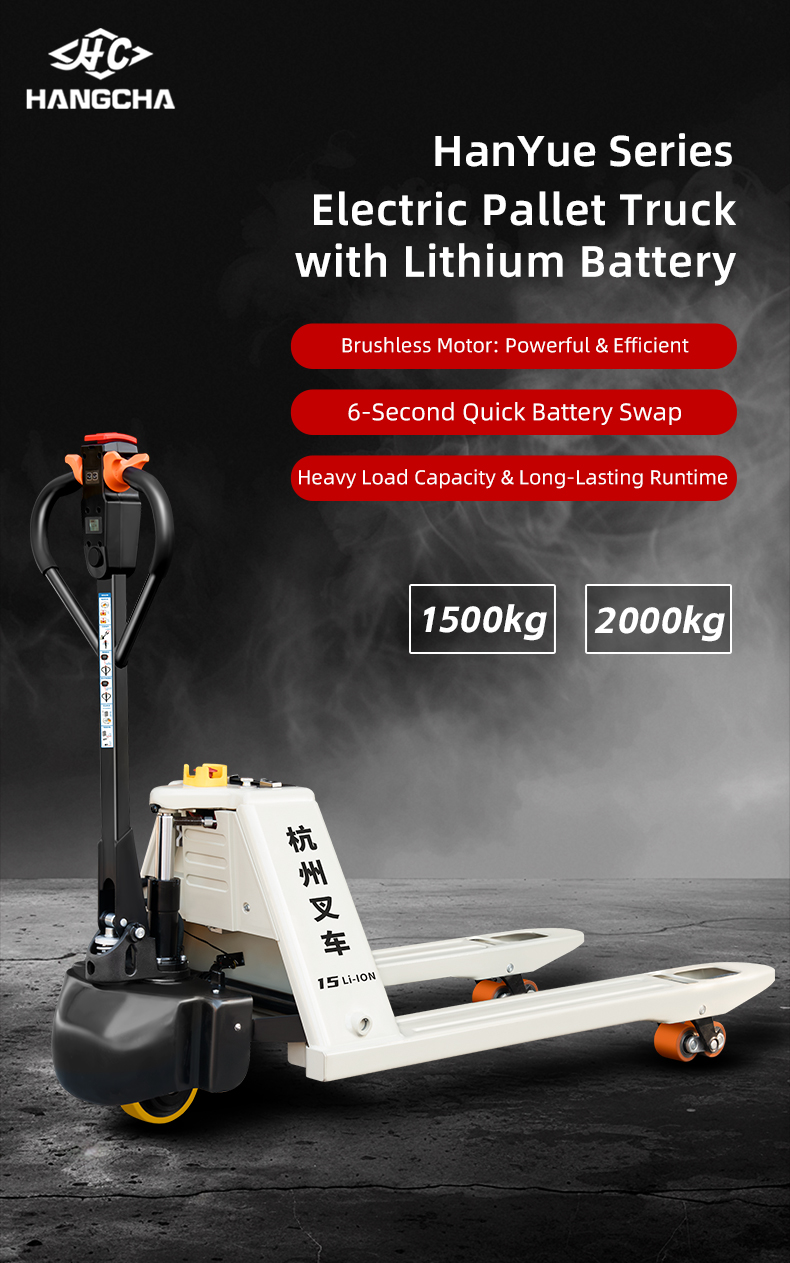

Hanyue series 2 Tons electric pallet truck lithium battery 48v15ah

The Hanyue series of all-electric lithium battery pallet trucks is designed for high-frequency handling and light-duty applications, offering two load capacity options: 1500kg and 200kg. It provides efficient and stable warehouse handling solutions. The vehicle features a compact structure and optimized layout, making it small, agile, and with a small turning radius, easily handling narrow aisles and dense shelving environments.

Equipped with a high-performance lithium battery system, the product supports fast charging and long battery life, significantly improving equipment utilization. It is widely applicable to e-commerce warehousing, manufacturing workshops, supermarket delivery, and cold chain logistics, and is particularly suitable for environments with limited access and high handling frequency, effectively improving operational efficiency and reducing overall operating costs.

PREV：No previous article
NEXT：Hanyue Series 1.5 Tons Electric Pallet Truck Lithium Battery 48v10ah

Product Advantages

FEATURES

Appearance

The Hanyue series of lithium battery-powered all-electric pallet trucks features a robust, streamlined body design with a compact and sturdy structure. Combined with high-precision welding, the overall lines are smooth and the details are exquisite. The body uses a unified industrial color scheme, with a standard pebble gray paint finish, complemented by clear and prominent functional and load markings, making operation intuitive and convenient.

The product supports customization of fork size and exterior color, ensuring both robust performance and industrial aesthetics while meeting the personalized needs of different customers.

Security

The Hanyue series is equipped with an intelligent anti-slip slope system, easily handling warehouse ramps and loading/unloading platform conditions. The operating handle integrates an emergency reverse protection switch, effectively preventing operator injury in emergencies. The entire vehicle features a multi-functional LCD display screen that shows real-time battery status and fault codes, with a clear and intuitive interface.

It not only allows operators to monitor the equipment's operating status at any time, but also provides accurate data for after-sales maintenance, effectively improving the safety and efficiency of vehicle operation.

Durability

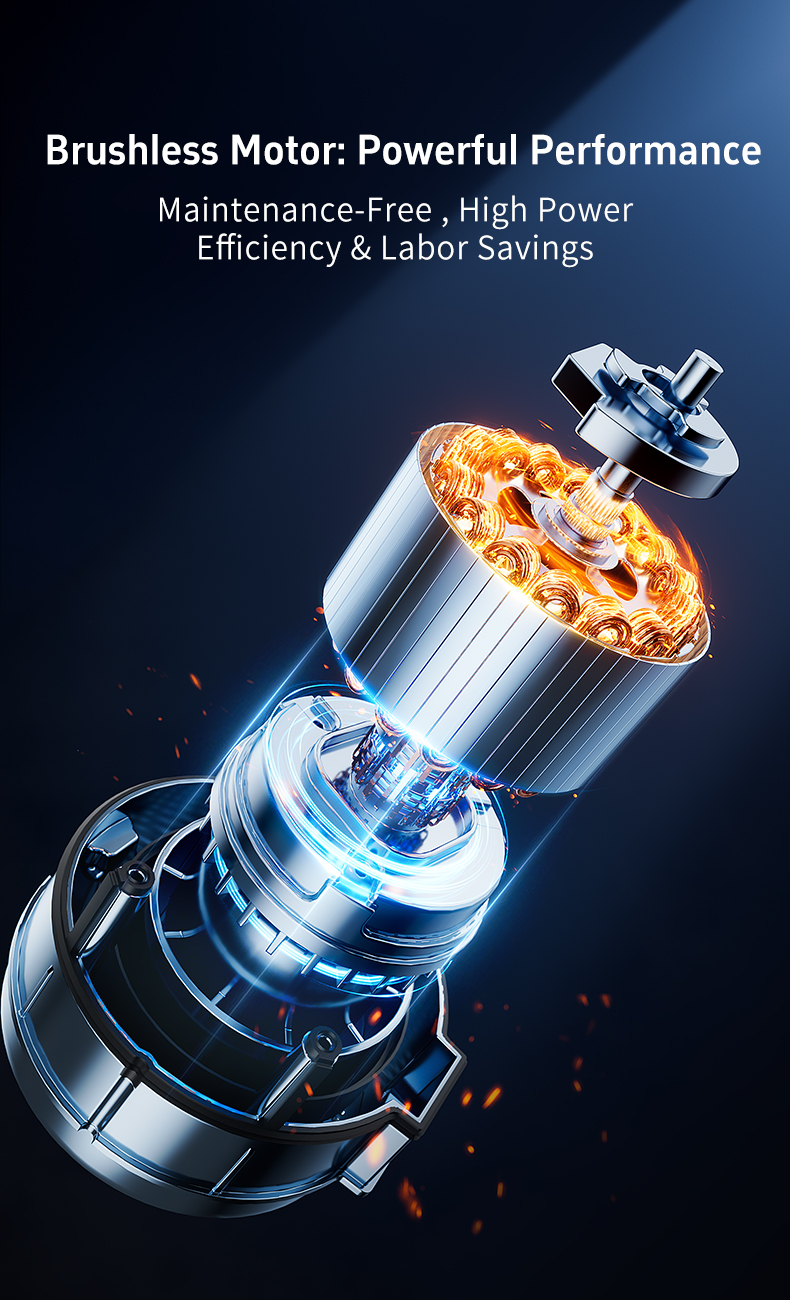

The Hanyue series adopts a high-performance lithium battery system, supporting 6-second fast battery swapping and fast charging technology. Its large-capacity, maintenance-free lithium battery is durable and meets the needs of high-frequency continuous operation. Equipped with a high-efficiency brushless drive motor, it offers strong power, stable operation, and its maintenance-free design effectively reduces operating costs.

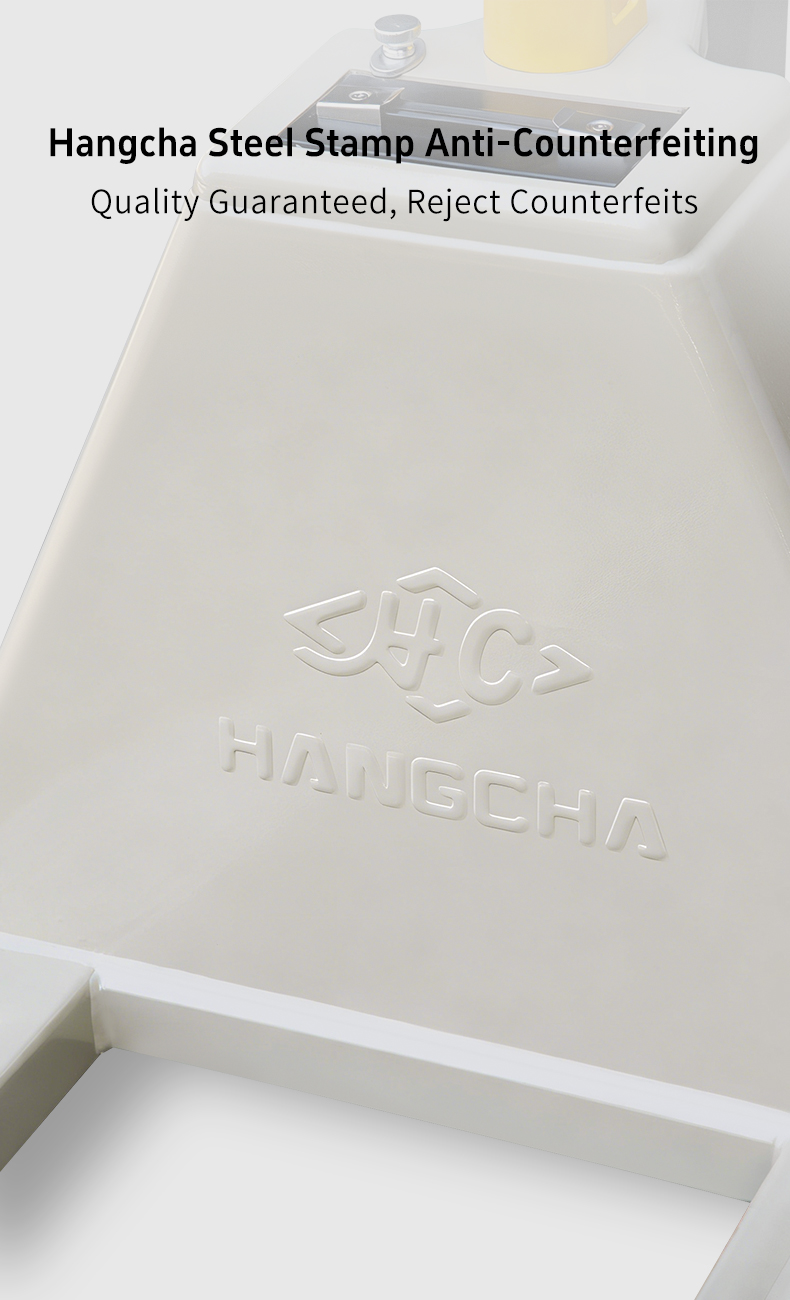

The entire machine is equipped with one-piece stamped high-strength forks, which are sturdy and not easily deformed; wear-resistant polyurethane load-bearing wheels ensure smooth rolling and durability. The core components of the machine are of reliable quality and are equipped with Hangcha steel stamp anti-counterfeiting marks, providing greater peace of mind in terms of quality assurance and comprehensively improving the long-term stability and reliability of the equipment.

Comfort

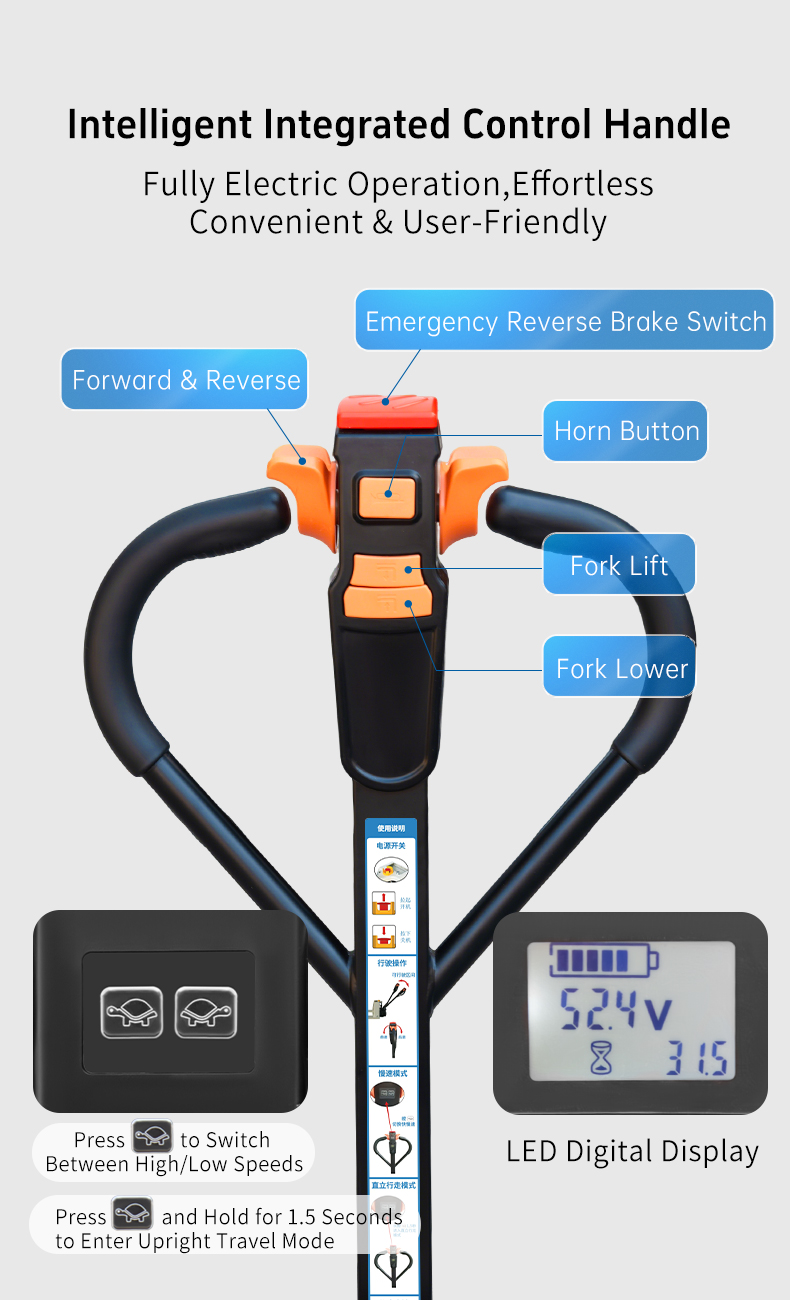

The Hanyue series features a multi-functional integrated operating handle with an ergonomic design and a sensitive butterfly switch, ensuring smooth operation and reducing fatigue during extended work sessions. All driving and lifting operations can be performed with one hand, enhancing operational convenience and efficiency.

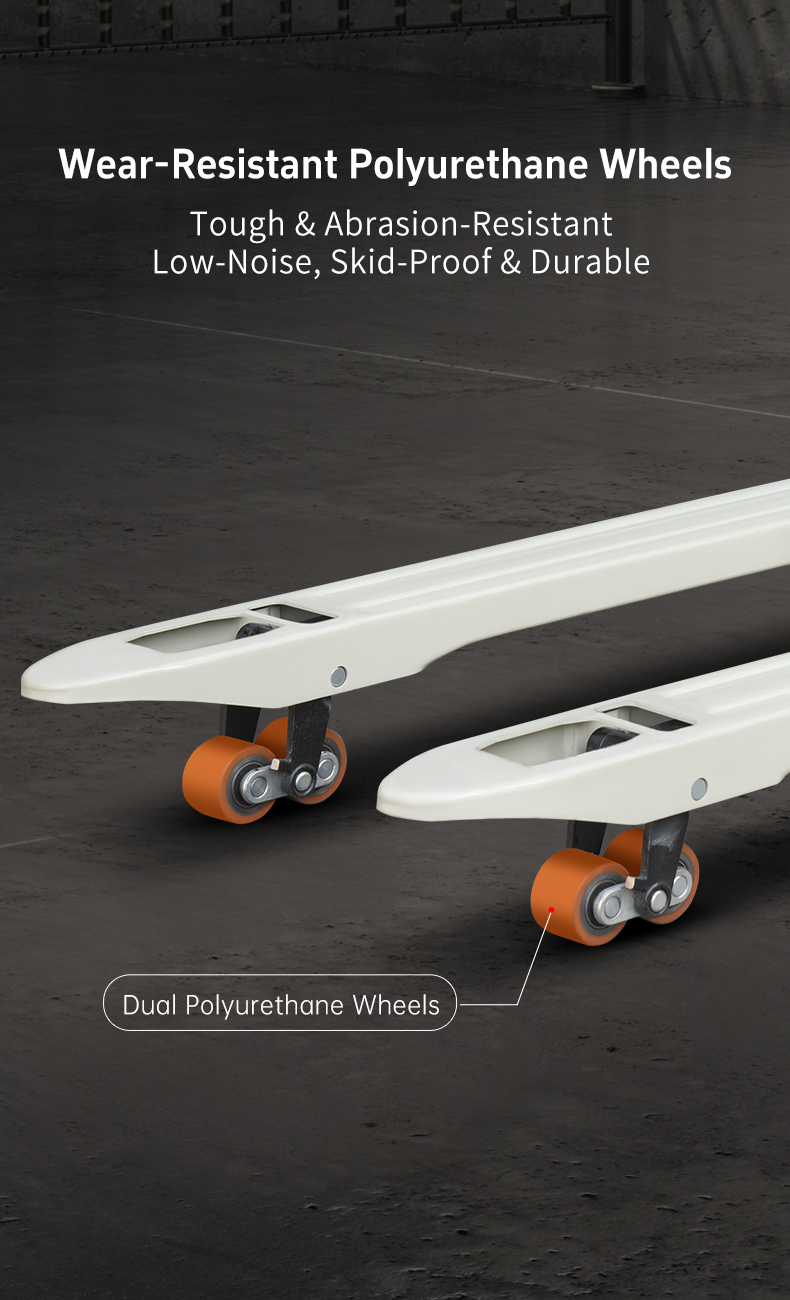

The vehicle comes standard with high-quality polyurethane wheels, suitable for epoxy flooring and flat warehouse floors. They are wear-resistant, low-noise, and have good shock absorption properties, while effectively protecting the ground and ensuring a smoother and more comfortable handling process.

Product Specifications

Model		CBD15-W03-I	CBD20-W03-I
Rated Capacity	kg	1500	2000
Load Center Distance	mm	600	600
Service Weight (incl. battery)	kg	123	125
Wheel Type	/	Polyurethane	Polyurethane
Drive Wheel Size (Ø × Width)	mm	Φ160 × 55	Φ160 × 55
Drive / Load Wheel Quantity	/	1,4	1,4
Lift Height (h3)	mm	115	115
Tiller Height (min/max) (h14)	mm	700 / 1230	700 / 1230
Min. Fork Height (h13)	mm	85 (±1)	85 (±1)
Overall Length (l1)	mm	1650	1650
Overall Width (b1)	mm	560 / 685	560 / 685
Fork Size (Thickness / Width / Length)	mm	55 / 160 / 1150	55 / 160 / 1150
Fork Outside Width (b5)	mm	560 / 685	560 / 685
Aisle Width for 1000×1200 Pallet (Crossways)	mm	2168	2168
Aisle Width for 800×1200 Pallet (Lengthways)	mm	2081	2081
Turning Radius (Wa)	mm	1422	1422
Travel Speed (Laden / Unladen)	km/h	3.8 / 4.3	3.7 / 4.2
Max. Gradeability (Laden / Unladen)	%	5/16	5/16
Drive Motor Power	kW	0.75	1
Lift Motor Power	kW	0.8	0.8
Battery Voltage / Capacity	V/Ah	48V / 10Ah	48V / 15Ah
Charger	A	3	5
